Inconel 600 Buttweld Pipe Fittings Manufacturer & Supplier

Table of Content

Inconel 600 buttweld fittings offer strong resistance to oxidation, carburization, and corrosion in harsh service. These fittings are widely used in high-pressure and high-temperature piping lines where strength and stability matter. Bhansali Nickel Alloys manufactures and supplies Inconel 600 elbows, tees, reducers, and caps with strict control on chemistry and dimensions. Each fitting is built to handle heat, stress and aggressive media without loss of performance. This enables smooth operation and a long service life in key systems. Careful forming and testing ensure that the quality is constant throughout all batches. This makes the fittings suitable for demanding industrial pipelines, where failure is not an option.

Inconel 600 Buttweld Fittings Specifications

We manufacture our fittings in accordance with international standards. The following table specifies the key specifications.

Feature	Details
Standards	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9, B16.28, MSS-SP-43
Size Range	1/2″ NB to 24″ NB
Schedule	SCH 5S, 10S, 40S, 80S, 160, XXS
Connection	Buttweld (Welded)

Chemical Composition of Inconel 600

The chemical composition of Inconel 600 is designed for stability, and resistance to corrosive chemicals. This balanced combination of elements offers the required mechanical properties for industrial applications.

Element	Content (%)
Nickel (Ni)	72.0 min
Chromium (Cr)	14.0 – 17.0
Iron (Fe)	6.0 – 10.0
Manganese (Mn)	1.0 max
Carbon (C)	0.15 max
Silicon (Si)	0.5 max

Types of Inconel 600 Buttweld Fittings

We provide a wide range of fitting types that can handle various directional changes and pipe size transitions.

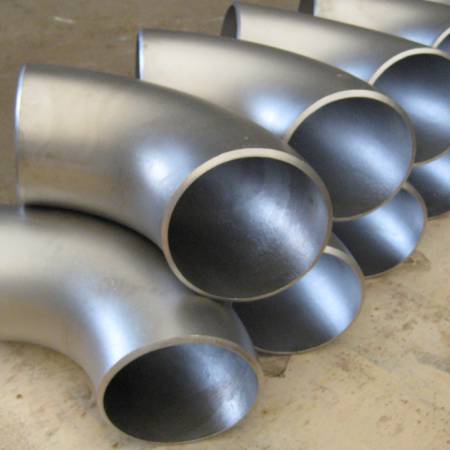

Long Radius Elbows

These elbows have a center-to-face distance equal to 1.5 times the nominal pipe diameter. This gentle curve creates less pressure drop and internal turbulence compared to tighter turns. They are the standard choice for systems requiring smooth fluid flow over long distances.

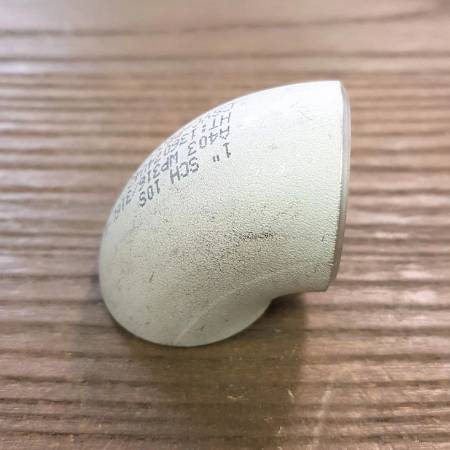

Short Radius Elbows

With a radius equal to the pipe diameter, these fittings are built for compact piping layouts. They allow for 90-degree turns in confined engine rooms or complex chemical processing skids. While they cause slightly more friction, they are essential when space is at a premium.

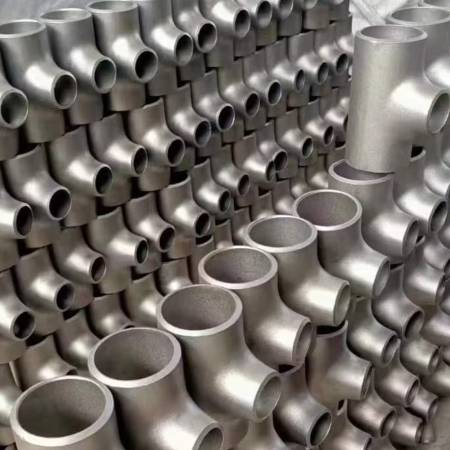

Equal & Reducing Tees

Equal tees connect three pipes of the same dimensions in order to improve the distribution, or combine the flow. Reducing tees possess a small branch outlet, enabling the change in pipe diameter while dividing the line. Both types are designed to withstand significant stress during the connection of the piping system.

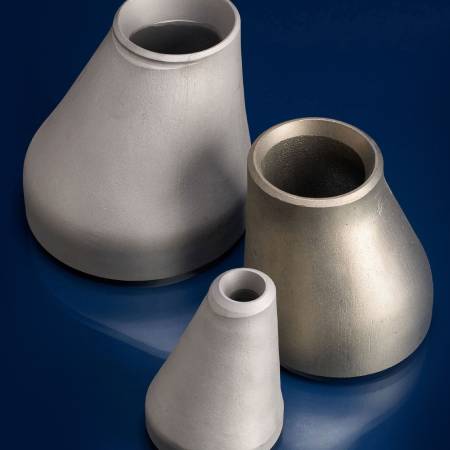

Concentric & Eccentric Reducers

Concentric reducers connect the centerlines of two pipes, which makes them ideal for vertical lines. On the other hand, eccentric reducers include an offset construction, that keeps one side of the pipe flat, which prevents leakage from air pockets, or liquid collecting in horizontal suction lines.

Hot Forming & Heat Treatment Process

Hot forming shapes the fittings at controlled temperatures to prevent cracks and stress. This method keeps grain flow uniform through bends and transitions. After forming, solution annealing restores ductility and strength. Heat treatment also removes residual stress from forming and welding. Controlled cooling promotes structural stability, and corrosion resistance. Each stage adheres to prescribed temperature restrictions. This method ensures that the fittings work effectively during pressure, and temperature cycling.

Weldability & Joint Performance

Inconel 600 buttweld fittings exhibit superior weldability due to its non-magnetic properties, and robust resistance to corrosion, including stress corrosion cracking in chloride environments. The material preserves its strength and integrity at temperatures above 2000°F (1093°C). Hot and cold forming can be performed using standard techniques, enabling easy fabrication and welding. Welded joints have improved fatigue strength, toughness, and hardness. This allows reliable performance under repeated loads in oil and gas, chemical processing, power generation, and aerospace systems.

Inspection & Non-Destructive Testing

Each fitting passes dimensional checks and visual inspection before dispatch. Non-destructive tests confirm internal soundness. Common tests include radiography, ultrasonic testing, and dye penetrant checks. These tests detect cracks, voids, and surface flaws. Chemical and mechanical tests verify material grade and strength. Inspection records ensure traceability and compliance. This approach supports consistent quality across supplied batches.

Export Packaging & Delivery Assurance

Fittings are packed to prevent damage during long transit. Ends are capped to protect weld bevels. Each item is wrapped and placed in sturdy wooden cases. Clear labelling helps quick identification at the site. Packing follows export norms for sea and air shipments. Delivery schedules are planned to meet project timelines. This reduces risk during handling and transport.

Applications & Industries

Inconel 600 is a nickel-chromium alloy known for its corrosion resistance, and high temperature strength. Due to these properties, it is used in 10 key industries, including chemical processing, power generation, aerospace, marine, and food processing.

Chemical Processing Industry: Inconel 600 is commonly used in chemical processing plants due to its resistance to corrosion from acids, alkalis, and salts. It operates effectively in harsh environmental conditions, which makes it ideal for heat exchangers, reactors, and condensers with long service life.

Aerospace Industry: The alloy remains strong even when it is very hot, which makes it an ideal option for parts of aircraft engines, exhaust systems, and turbine components exposed to extreme heat and stress.

Power Generation: In power plants, Inconel 600 is used in boiler feedwater systems, steam generator tubes, and nuclear reactors. Its resistance to high temperatures and oxidation enables reliable performance in operations.

Marine Industry: Inconel 600 buttweld fittings are widely used in marine structures, and offshore platforms. The material is highly resistant to seawater corrosion and provides long-term durability in marine environments.

Oil and Gas Processing: The strong structure and corrosion resistance of Inconel 600 make it suitable for pipelines, processing units, and equipment used in demanding oil and gas operations.

Heat Exchangers and Condensers: This alloy retains its mechanical strength even at elevated temperatures, making it a dependable choice for heat exchangers and condenser systems.

Furnace and Nitriding Containers: Inconel 600 is an excellent option for high-temperature furnace conditions, and nitriding containers, as it does not corrode easily when exposed to heat.

Water Systems and Reactors: The material is durable and resistant to corrosion, which makes it suitable for water systems and reactors, like nuclear applications.

Paper and Pulp Industry: Inconel 600 is the preferred material in the paper and pulp industry due to its resistance to corrosive chemicals, which reduces the maintenance and downtime costs.

Food Processing Industry: It is resistant to corrosion, and chemical damage, which ensures it is a safe, and long-lasting material for food processing equipment.

Reliable Inconel 600 Buttweld Fittings Supplier

Choosing the right partner for your pipe requirements is essential for project success. Bhansali Nickel Alloys has years of experience, and uses modern manufacturing procedures for inconel 600 buttweld fittings. Our team understands the technical challenges of high-temperature industries. From the earliest inquiry to the final delivery, we provide clear communication and upfront pricing. We maintain a large stock to meet the demands promptly, reducing downtime. We prioritise long-term relationships through honesty and quality work. You can trust our products to meet the most rigorous safety standards in your sector. Let us help you secure your pipelines with fittings that last. We are ready to support your next big project with our premium inventory. If you have any questions or need assistance, feel free to contact us—we’re here to help!

Frequently Asked Technical Questions

What are Inconel 600 buttweld fittings used for?

Inconel 600 buttweld fittings are used in high-temperature corrosive piping systems, such as furnaces, chemical plants, and power units.

Are these fittings suitable for high temperatures?

Yes. Inconel 600 fittings maintain strength, and stability at high temperatures. It resists scaling and oxidation during heat exposure.

Which standards apply to Inconel 600 fittings?

ASTM B366 covers material requirements. Dimensional standards include ASME B16.9 and ASME B16.28.

Are custom sizes available?

Custom sizes and schedules can be supplied based on project needs. Drawings and specifications guide production.

How corrosion-resistant is Inconel 600?

The alloy resists corrosion from acids, alkalis, and high-temperature gases. It performs well in aggressive environments.

Do you supply fittings with MTC?

Yes, fittings are supplied with mill test certificates. The MTC confirms chemical and mechanical properties.

Can these fittings be used in chemical plants?

Yes, they are widely used in chemical processing lines. The alloy handles corrosive media and heat effectively.
